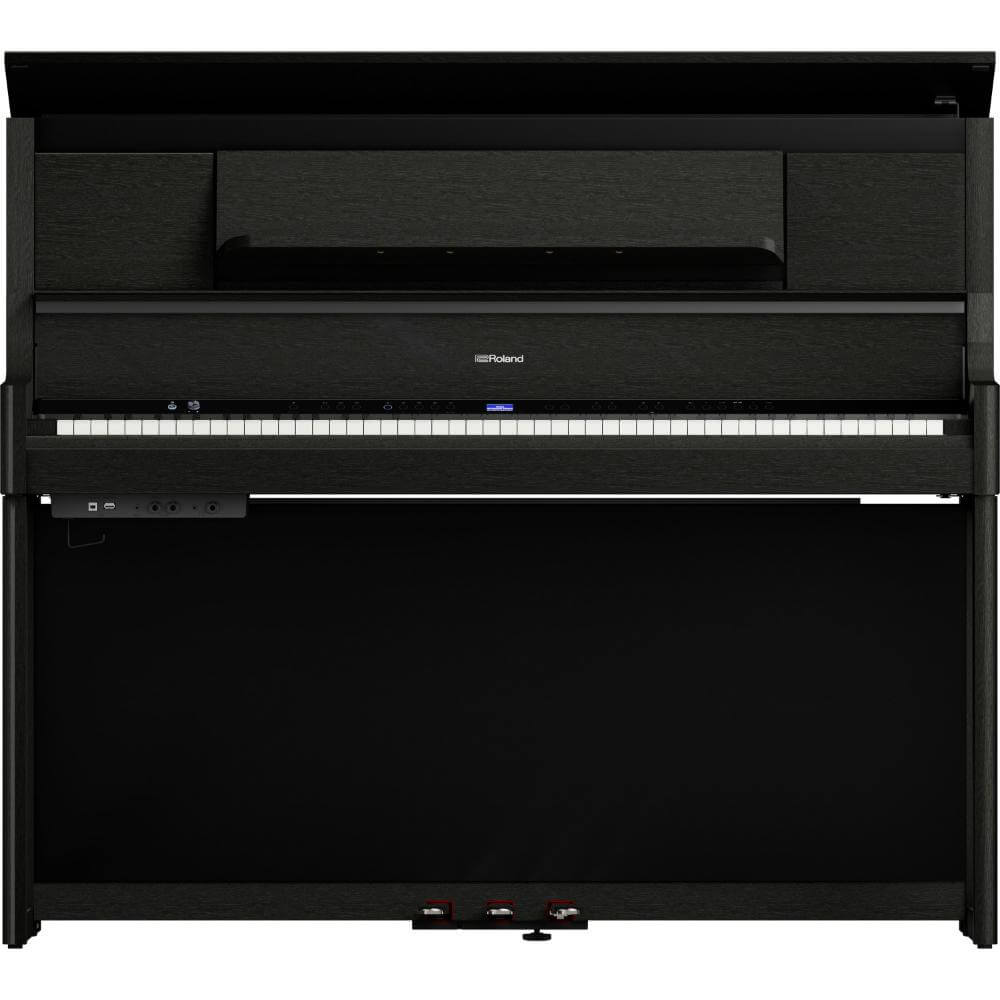

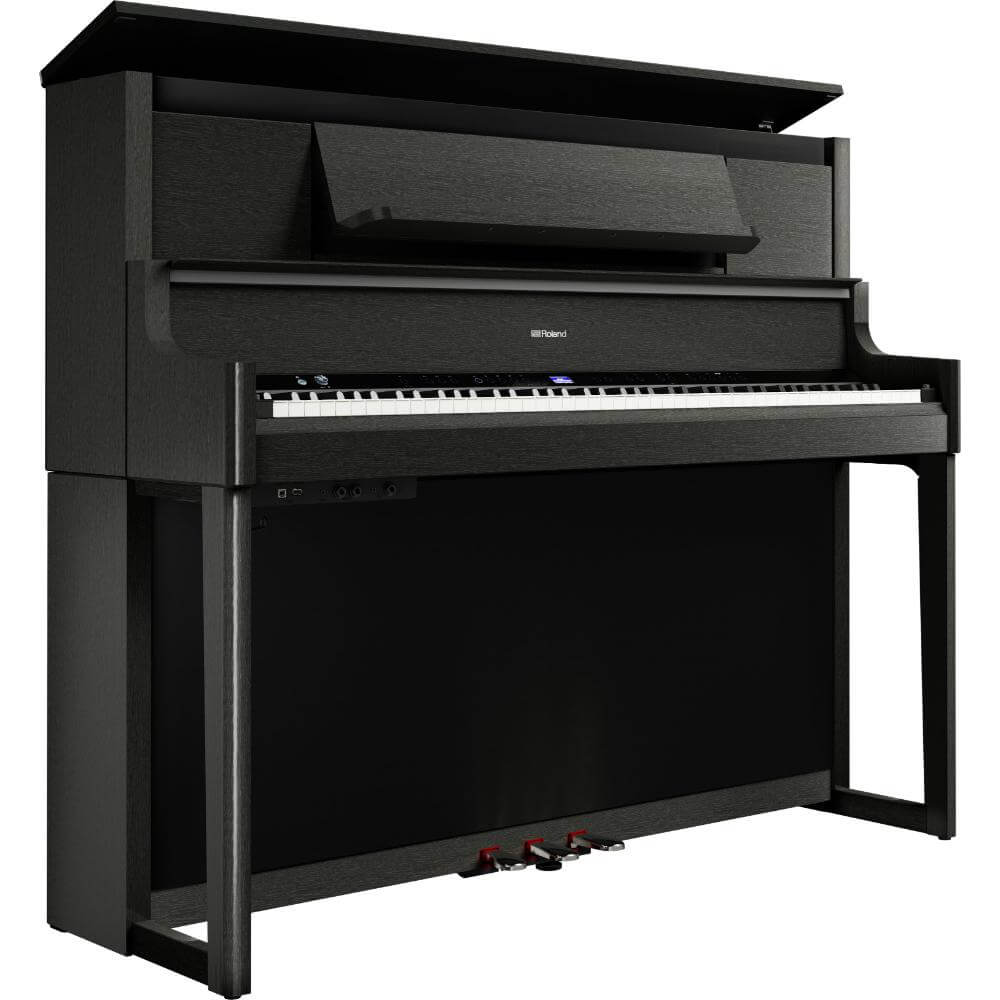

Roland LX-9CH Digital Piano with bench Charcoal (LX9CH)

https://youtu.be/BJrEqCoQ06Y?si=eCJJDhVjQBMGPFHX

Premium Grand Performance in an Upright Cabinet

The LX-9 is the flagship piano in the premium LX lineup. With commanding looks, unrivaled sound, and nuanced expression, the LX-9 embodies everything you’d expect from a high-end concert grand piano—with all the benefits of an advanced modern instrument. Enjoy a host of digital features to enhance your experience, like Bluetooth connectivity, wireless control with the Roland Piano App, and maintenance-free care.

LX-9 Digital Piano Features:

• Premier upright piano with elegant high-gloss and non-polished finishes and finely crafted details
• Designed with Roland’s advanced Piano Reality approach for a refined musical experience
• Piano Reality Modeling sound engine provides authentic grand piano sound and response with unlimited polyphony
• Hybrid Grand keyboard with progressive hammer action, escapement, hybrid wood/molded keys with Ivory Feel, long key pivot length, and unique haptic vibration
• High Precision Sensing technology for ultra-detailed touch response
• Progressive Damper Action, soft, and sostenuto pedals with continuous detection, damper modeling, and support for traditional techniques
• Piano Reality Projection sound system with advanced sonic processing, premium audio components, and eight speakers with a dedicated center channel
• Smart touch blackout panel with intuitive icons
• Top lid can be set to open or closed
• Low-maintenance design that never needs tuning
• Connect a smartphone or tablet via Bluetooth to play along with favorite songs and work with MIDI music apps
• Control LX-9 features, explore lessons, and more with the companion Roland Piano App
• Advanced metronome, recorder, and dual headphones jacks for daily practice
• USB ports for connecting with computers and flash storage devices
• Available in polished white, polished ebony, and charcoal black finishes

Elegant Expression

Discover rich, full sound with complex overtones and harmonics delivered by Roland’s advanced Piano Reality Modeling technology. From pianissimo to fortissimo, breathe life into your music with a wide dynamic range and nuanced playability. Add depth to specific notes through half-pedaling with the continuous sustain pedal. And personalize the sound by changing the timbre of the piano.

A Symphony of Sounds

The versatile LX-9 provides an extensive spectrum of tonal nuances and expressive capabilities that intuitively adapt to your playing. Begin gently to evoke a dignified, soothing timbre, and when you crescendo, the tone dynamically brightens in response to your touch. As emotions and technique intertwine in your playing, the LX-9 faithfully mirrors your passion.

Responsive Touch

The LX-9 delivers an organic playing experience that naturally responds to your touch. From commanding fortissimo excerpts to half-touch and rapid trills, the sensitive keyboard translates unlimited tonal colors. Legato, staccato, and other articulations ring true with precision key release control. Haptic feedback and the escapement mechanism provide immediate acoustic interaction within expressive passages. Long hybrid keys allow for a consistent weighted feel regardless of the hand position on the keyboard, reducing the risk of strain during extended practice sessions or performances.

Lose Yourself in Music

A space’s ambience is a crucial part of an acoustic piano sound. From a vast concert hall to an intimate studio space, Piano Reality Ambience puts six environments at your fingertips. Eight speakers independently deliver the sound of different instrument elements, including string and cabinet resonances, subtle hammer noise, and more. When you want to play silently, plug in headphones for an immersive solo experience.

A Sound Investment

The LX-9’s classic upright design strikes a sophisticated pose in any environment. A movable lid and discreet blackout screen convey the same look as an acoustic piano. Second-floor installation woes are now a thing of the past—the LX-9 ships in two boxes for easy setup in any room. And thanks to its digital design, this fine instrument requires none of the regular tuning and other maintenance costs that come with owning an acoustic piano.

Piano Designer

Dive deeper into your piano’s sound and adjust the character of each note, including string tuning and temperament. Fine-tune the tone and resonance to your space for the optimal acoustic response. Then save your tuning adjustments as customized presets to summon if several pianists share the LX-9.

Make a Connection

Access deeper settings, play along with streamed music, find digital scores, and more when you pair with the Roland Piano App and other music apps via Bluetooth. Discover additional digital features like Twin Piano mode for same-range duets, an onboard recorder to evaluate progress, and a metronome to hone your timing skills.

Envision Your Perfect Piano

Need help visualizing an LX in your home? Use our Piano AR to see how different pianos would look in your space. Select a model and use your smartphone to scan a room. A fully 3D piano will appear. You can change the angle, color, and finish or move it around until it fits perfectly.

SPECIFICATIONS

Sound Generator

Piano Sound (Piano Reality Modeling)

Polyphony

Piano: Limitless (solo playing using ‘Piano’ category tones)

Other: 256

Tones

Total 324 Tones

Grand: 4 Tones

Upright: 5 Tones

Classical: 5 Tones

E.Piano: 12 Tones

Organ: 12 Tones

Other: 286 Tones

Ambience

Piano Reality Ambience

Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral

Depth: 11 steps

Keyboard

Hybrid Grand Keyboard (88keys Hammer Action Keyboard) with Escapement, Ebony/Ivory Feel and High Precision Sensing and Haptic Key Vibration

Pedal

Damper (Progressive Damper Action Pedal, capable of continuous detection, Damper Modeling)

Soft (capable of continuous detection, function assignable)

Sostenuto (function assignable, with muffler pedal function)

Sound System

Piano Reality Projection:

Cabinet Speakers: 25 cm (9-7/8 inches) x 2 (with Speaker Box)

Near-field Speakers: (12 cm (4-3/4 inches) x 8 cm (3-3/16 inches)) x 2 (with Speaker Box)

Center Near-field Speakers: 8cm (3-3/16 inches) x 2

Spatial Speakers: 2.5 cm (1 inch) x 2 (Dome type)

Rated Power Output:

33 W x 2

21 W x 2

13 W x 2

14 W x 2

Headphones

Piano Reality Headphones Ambience

Cabinet

Music rest: with Music holders, Key cover: Fallboard type, with Keyboard Lid Switch

Tuning, Voicing

Touch Sensitivity (Key Touch: 100 steps, fixed touch)

Hammer Response: Off, 10 steps

Master Tuning

415.3–466.2 Hz (adjustable in increments of 0.1 Hz)

Temperament:

10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key

Piano Designer

Lid; Key Off Noise, Hammer Noise, Duplex Scale, Full Scale String Resonance, Key Off Resonance, Cabinet Resonance, Soundboard Type, Damper Modeling, Soft Pedal, Single Note Tuning, Single Note Volume, Single Note Character

Internal Songs

Total 394 songs, Listening: 27 songs, Ensemble: 30 songs, Entertainment: 20 songs, Do Re Mi Lesson: 30 songs, Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)

Data Playback

Playable Software

Standard MIDI Files (Format 0, 1)

Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps–320 kbps, requires USB flash drive)

Recorder

-Recordable Software

Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)

Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)

Bluetooth

Bluetooth Ver 5.0

Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)

CODEC: SBC (Supports SCMS-T content protection)

Compatible Android/iOS Apps (Roland)

Roland Piano App

Convenient Functions

Metronome (adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone, with Rhythm Pattern: 80 patterns)

Dual, Split, Twin Piano (with Individual Mode), Transpose (in semitones)

Speaker volume and Headphones volume automatically select function

Speaker Auto Mute, Volume limit function, Panel Lock, Panel Off, Auto Off

Display

Graphic LCD 128 x 64 dots

Connectors

DC In jack

Input jacks: Stereo miniature phone type

Output (L/Mono, R) jacks: 1/4-inch phone type

USB Computer port: USB B (compatible with USB MIDI/Audio)

USB Memory port: USB A

Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

Power Supply

AC adaptor

Power Consumption

Power Consumption: 65 W (when using the included AC adaptor)

* Approximate power consumption when playing the piano at the center value of the volume: 25 W

* Power consumption when sound has not been played after power-on: 23 W

* Power consumption when in OFF mode (when the power automatically turns off): 0.2 W

Dimensions

With top lid close:

1,395 (W) x 491 (D) x 1,179 (H) mm

54-15/16 (W) x 19-3/8 (D) x 46-7/16 (H) inches

With top lid open:

1,395 (W) x 502 (D) x 1,254 (H) mm

54-15/16 (W) x 19-13/16 (D) x 49-3/8 (H) inches

Weight

LX-9-PE､LX-9-PW: 111.0 kg/245 lbs

LX-9-CH: 109.5 kg/242 lbs

Accessories

Owner’s Manual, “Roland Piano Masterpieces”, Leaflet “USING THE UNIT SAFELY”, AC adaptor, Power cord, Headphone hook
