Sound, Performance, and Design in Harmony

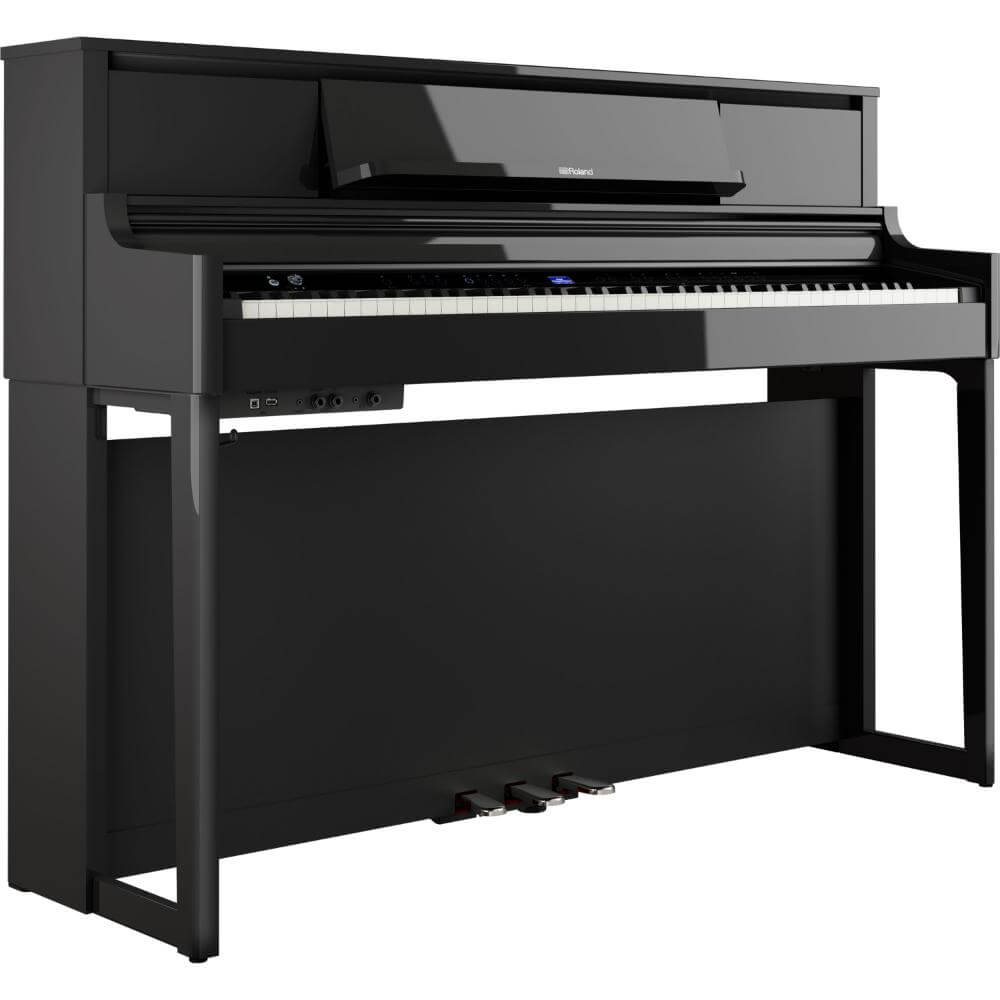

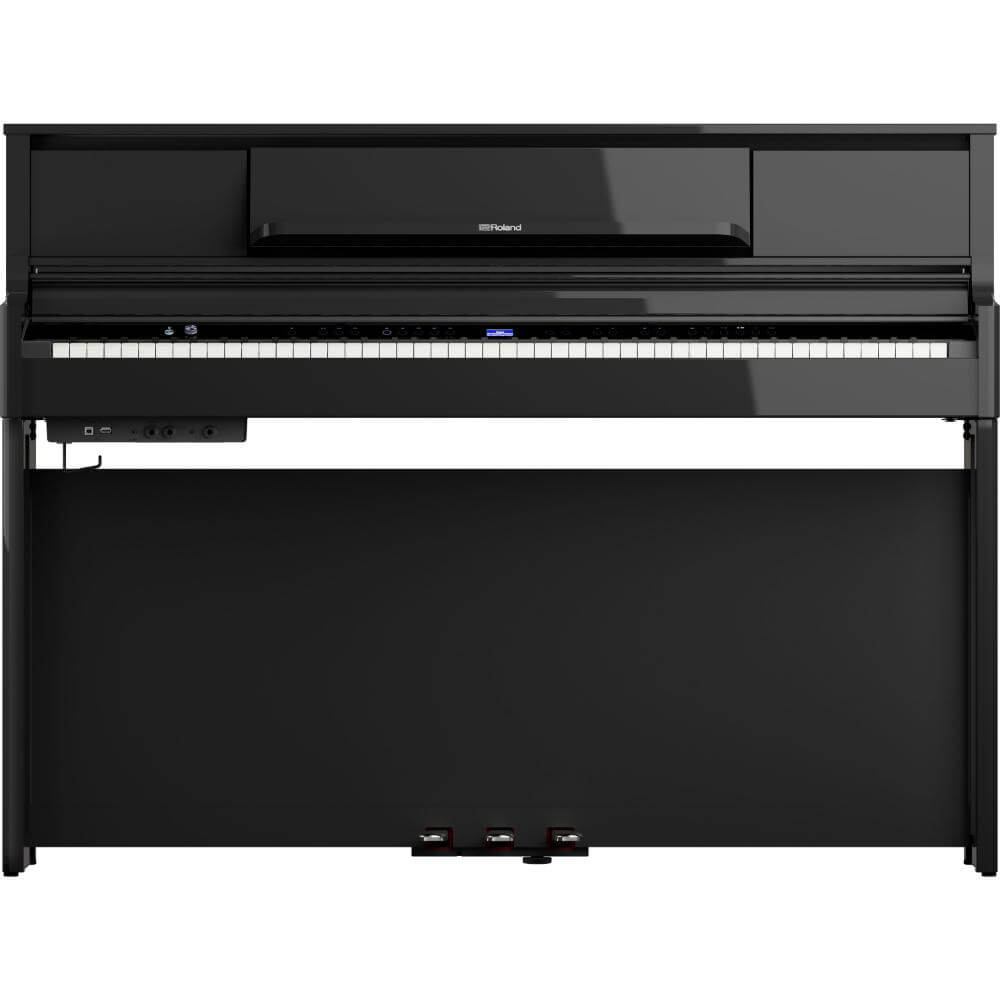

The LX-5 is an approachable upright piano that provides a solid foundation for skills to flourish. This entry-level instrument in the LX lineup packs a big sound, backed by advanced sound technology from the flagship LX-9. Feel the smooth hybrid action as your fingers glide over the keys. Tune into convenient digital features to propel performances and support learning. And rest assured that you’ve made a sound investment with a maintenance-free future.
LX-5 Digital Piano Features:
- Elegant polished ebony, charcoal black, dark rosewood, and light oak finishes and finely crafted details
- Premium Roland technologies come together to deliver a complete piano experience
- Piano Reality Modeling sound engine for exceptional piano sound and response
- PHA-50 hybrid keyboard with hammer action, escapement, and Ivory Feel materials
- High Precision Sensing key technology for ultra-detailed touch response
- Progressive Damper Action, soft, and sostenuto pedals with continuous detection, damper modeling, and support for traditional techniques
- Piano Reality Projection sound system with custom stereo speakers delivers immersive sound
- Connect a smartphone or tablet via Bluetooth to play along with favorite songs and work with MIDI music apps
- Control LX-5 features, explore lessons, and much more with the companion Roland Piano App
- Metronome, recorder, and dual headphones jacks for daily practice
- USB ports for connecting with computers and flash storage devices
Superior Expression
The LX-5 combines the rich, resonant sound of a premium grand piano with the immediate expression of an upright. In contrast with sampled pianos that just trigger pre-recorded sounds, Roland’s Piano Reality Modeling approach recreates every aspect of an acoustic piano’s voice for a truly immersive musical experience.
Limitless Inspiration
Enjoy endless tonal possibilities and expressive qualities that seamlessly adapt to your playing. Gentle keystrokes produce a dignified, mellow resonance while escalating intensity results in a bright tone that mirrors your dynamic touch. There’s no limit to the performance at your command.
True to Your Touch
To develop proper techniques, there’s no room for compromise regarding the keyboard action. An authentic weighted response allows more nuanced control during your most demanding technical pieces. The innovative PHA-50 hybrid keyboard puts the feel of premium acoustic piano keys under your fingers, combined with durability that will not let you down.
Shape Your Environment
Want to hear your performance from a studio, lounge, concert hall, or cathedral? Instantly transport yourself to four immersive environments with Piano Reality Ambience projected from the Piano Reality Projection four-speaker sound system. Or use headphones to envelop yourself in beautiful music without disturbing others around you.
Design Forte
Whether it’s the star of the room or neatly tucked into a corner, the LX-5’s compact design blends with nearly any space. Classic upright styling makes a striking addition to a range of home décor styles. Want your piano on an upper floor or in a basement? The LX-5 arrives in two boxes for easy installation on any level.
Personalize the Sound
If you want to tweak the LX-5’s tone, there’s no need to call a piano technician. Easily adjust the tonal character through elements like string tuning and temperament, resonance, keyboard sensitivity, and more.
Digital Repertoire
Spark creativity and sharpen skills with enhanced features only available with a Roland digital piano. Access digital scores, play with your favorite tunes, and dive deeper into settings by pairing the piano with the Roland Piano App and other music apps via Bluetooth. Play same-range duets with Twin Piano mode, record your playing to evaluate progress, keep time with the onboard metronome, and so much more.
Find Your Perfect Fit
If you struggle to imagine the LX-5 in your living space, use our Piano Augmented Reality (AR) feature. Choose the model, scan your room with your smartphone, and see a fully 3D piano seamlessly integrated into your environment. Then, customize the angle, color, and finish to align with your personal style, or adjust its placement until it fits with your surroundings.
SPECIFICATIONS
Sound Generator
Piano Sound (Piano Reality Modeling)
Polyphony
Piano: Limitless (solo playing using ‘Piano’ category tones)
Other: 256
Tones
Total 324 Tones
Grand: 4 Tones
Upright: 5 Tones
Classical: 5 Tones
E.Piano: 12 Tones
Organ: 12 Tones
Other: 286 Tones
Ambience
Piano Reality Ambience
Type: Studio, Lounge, Concert Hall, Cathedral
Depth: 11 steps
Keyboard
PHA-50 Hybrid Keyboard (88 keys Hammer Action Keyboard): with Escapement, Ebony/Ivory Feel and High Precision Sensing
Pedal
Damper (Progressive Damper Action Pedal, capable of continuous detection, Damper Modeling)
Soft (capable of continuous detection, function assignable)
Sostenuto (function assignable, with muffler pedal function)
Sound System
Piano Reality Projection
Speakers (Cabinet + Spatial Speakers: 12 + 2.5 cm (5 + 1 inches) x 2 (Coaxial Speaker))
Near-field Speakers: 8 cm (3-3/16 inches) x 2
Rated Power Output:
24 W x 2
21 W x 2
Headphones
Piano Reality Headphones Ambience
Cabinet
Music rest: with Music holders, Key cover: Slide type, with Keyboard Lid Switch
Tuning, Voicing
Touch Sensitivity (Key Touch: 100 steps, fixed touch)
Hammer Response: Off, 10 steps
Master Tuning
415.3–466.2 Hz (adjustable in increments of 0.1 Hz)
Temperament:
10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key
Piano Designer
Lid, Key Off Noise, Hammer Noise, Duplex Scale, Full Scale String Resonance, Damper Resonance, Key Off Resonance, Cabinet Resonance
Soundboard Type, Damper Modeling, Single Note Tuning, Single Note Volume, Single Note Character
Internal Songs
Total 394 songs, Listening: 27 songs, Ensemble: 30 songs, Entertainment: 20 songs, Do Re Mi Lesson: 30 songs, Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)
Data Playback
-Playable Software
Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps–320 kbps, requires USB flash drive)
Recorder
-Recordable Software
Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)
Bluetooth
Bluetooth Ver 5.0
Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
CODEC: SBC (Supports SCMS-T content protection)
Compatible Android/iOS Apps (Roland)
Roland Piano App
Convenient Functions
Metronome (adjustable Tempo/Beat/Downbeat/Pattern/Volume/Tone, with Rhythm Pattern: 80 patterns)
Dual, Split, Twin Piano (with Individual Mode), Transpose (in semitones)
Speaker volume and Headphones volume automatically select function
Speaker Auto Mute, Volume limit function, Panel Lock, Panel Off, Auto Off
Display
Graphic LCD 128 x 64 dots
Connectors
DC In jack
Input jacks: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
USB Computer port: USB B (compatible with USB MIDI/Audio)
USB Memory port: USB A
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type
Power Supply
AC adaptor
Power Consumption
Power Consumption: 31 W (when using the included AC adaptor)
* Approximate power consumption when playing the piano at the center value of the volume: 17 W
* Power consumption when sound has not been played after power-on: 16 W
* Power consumption when in OFF mode (when the power automatically turns off): 0.2 W
Dimensions
1,383 (W) x 468 (D) x 1,039 (H) mm
54-1/2 (W) x 18-7/16 (D) x 40-15/16 (H) inches
Weight
LX-5-PE: 75.5 kg/167 lbs
LX-5-CH, LX-5-DR, LX-5-LA: 74.0 kg/164 lbs
Accessories
Owner’s Manual, “Roland Piano Masterpieces”, Leaflet “USING THE UNIT SAFELY”, AC adaptor, Power cord, Headphone hook
